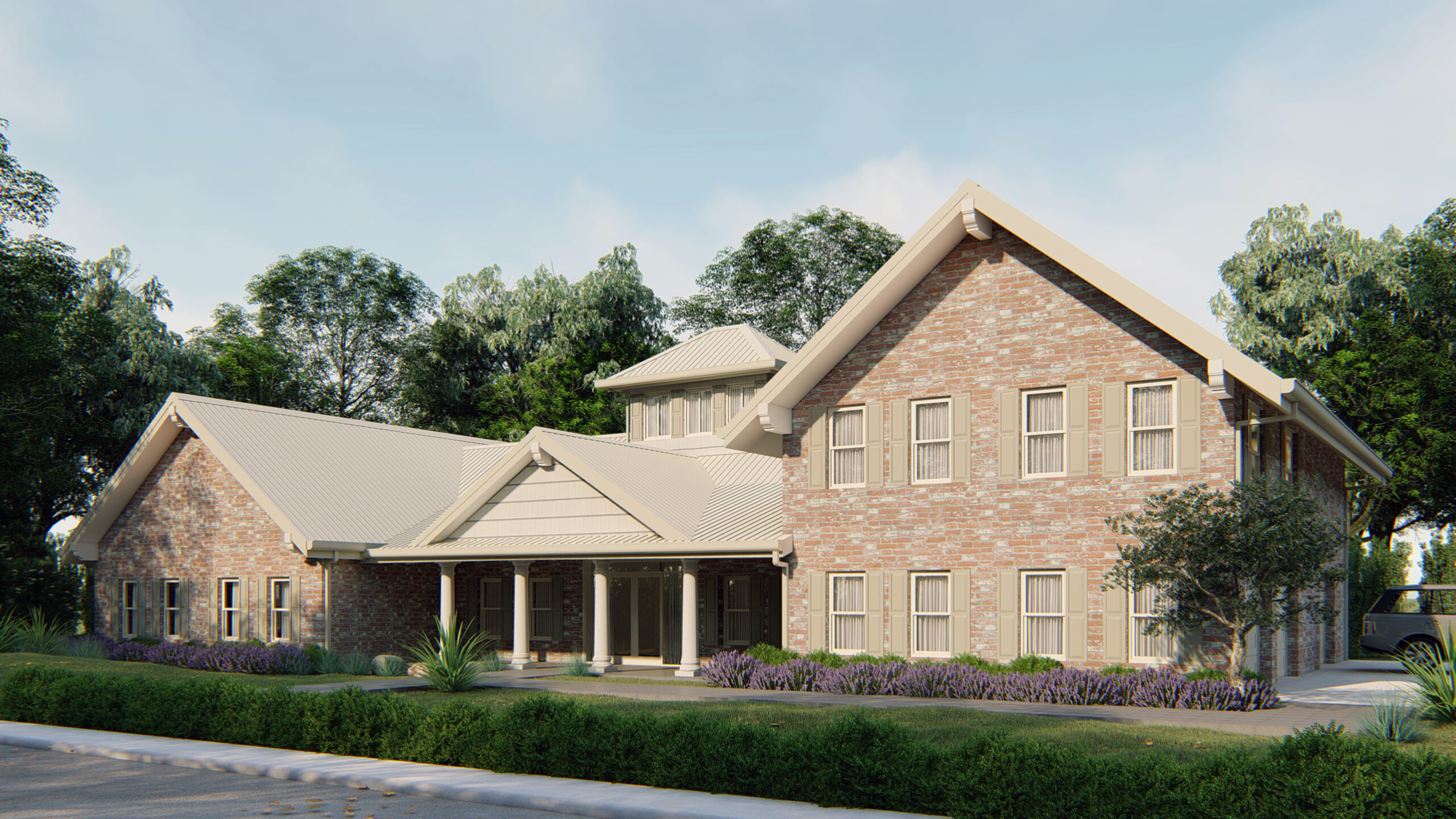

Ashton House

The Main House: 3 Bedrooms and 2.5 Baths

The Main House Total Conditioned Space: 2137 SF

Covered Front Porch: 293 SF

Screened Porch: 363 SF

2 Car Garage: 555 SF

Optional Workshop: 484 SF

Optional 2 Bedrooms and 2 Bath Apartment over Garage and Workshop: 1080 SF

Total Footprint: 93’ x 51’3”

Building Plans: $3137.00

Main Floor with Room Labels and Ceiling Heights

Over Garage Furnished

Rooms labeled and Ceiling

Main Floor Furnished

Construction Plans

Dimensions

Window and Door

West Elevation

South Elevation

Site, Foundation and Framing

Roof Plan and HVAC

North Elevation

East Elevation

Clerestory Window

Apartment Window and Door

2nd Story Apartment with Dimensions
